2SC – Two-Level Scissor Parking Lift
2SC – Two-Level Scissor Parking Lift
Couldn't load pickup availability

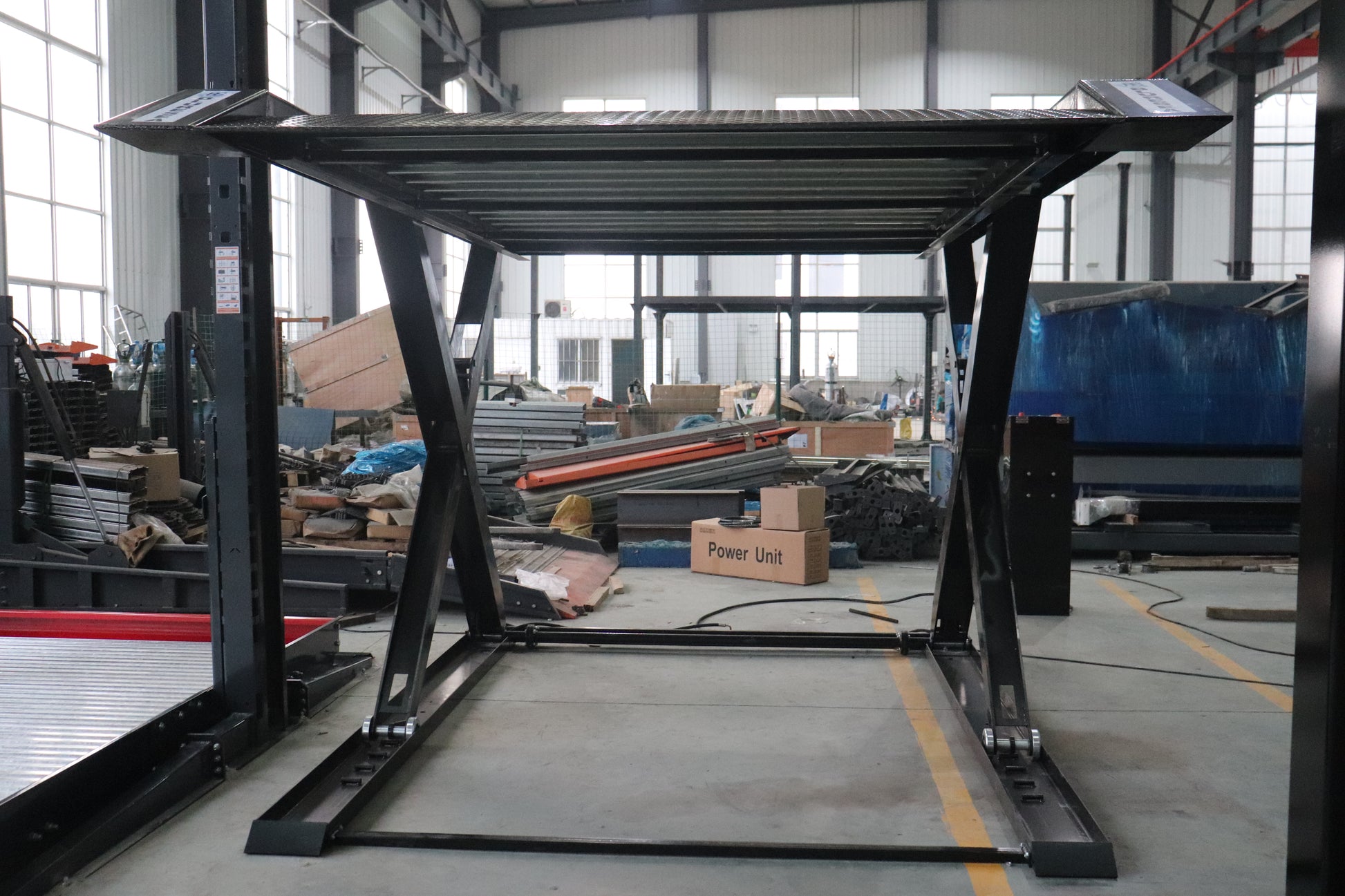

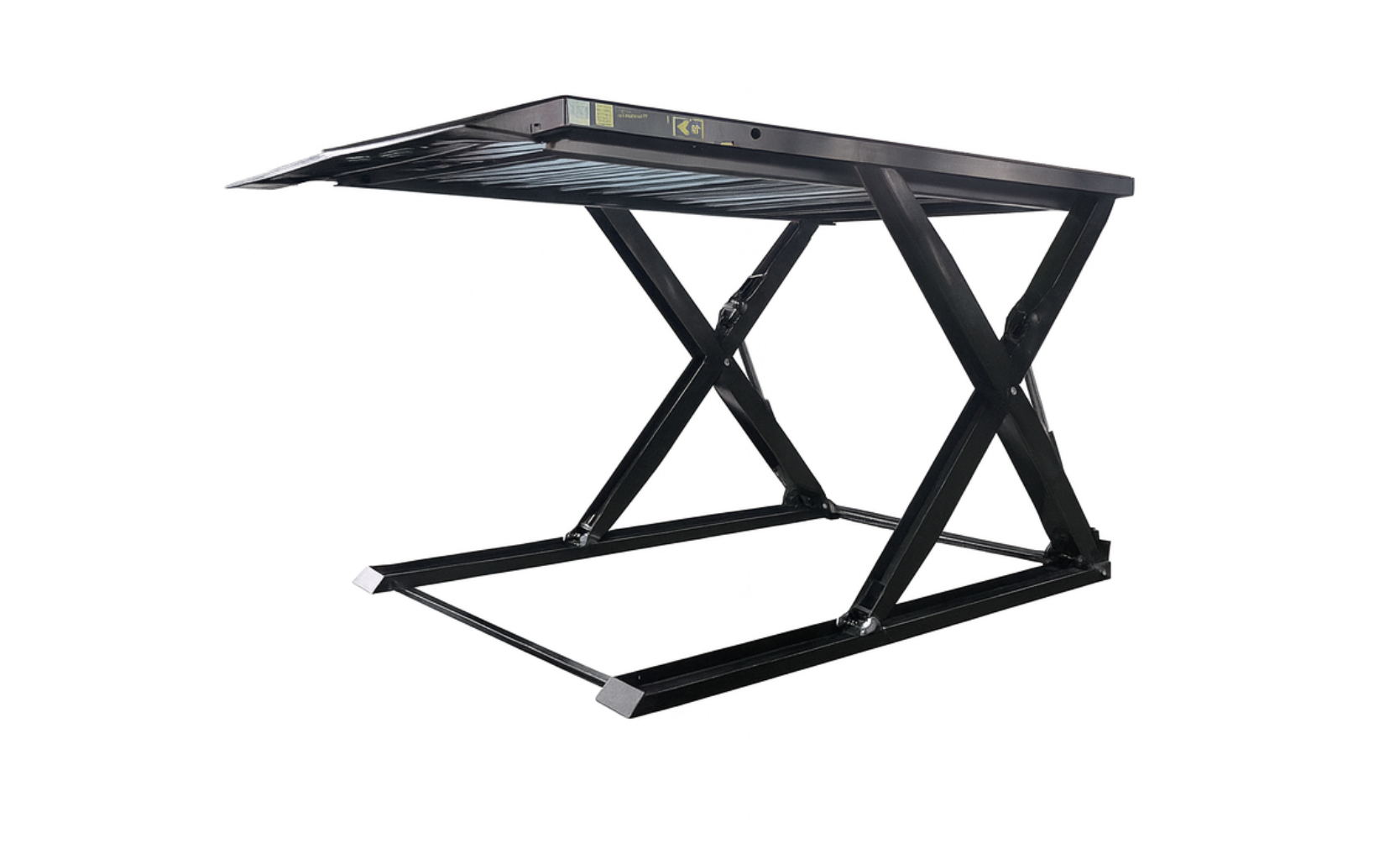

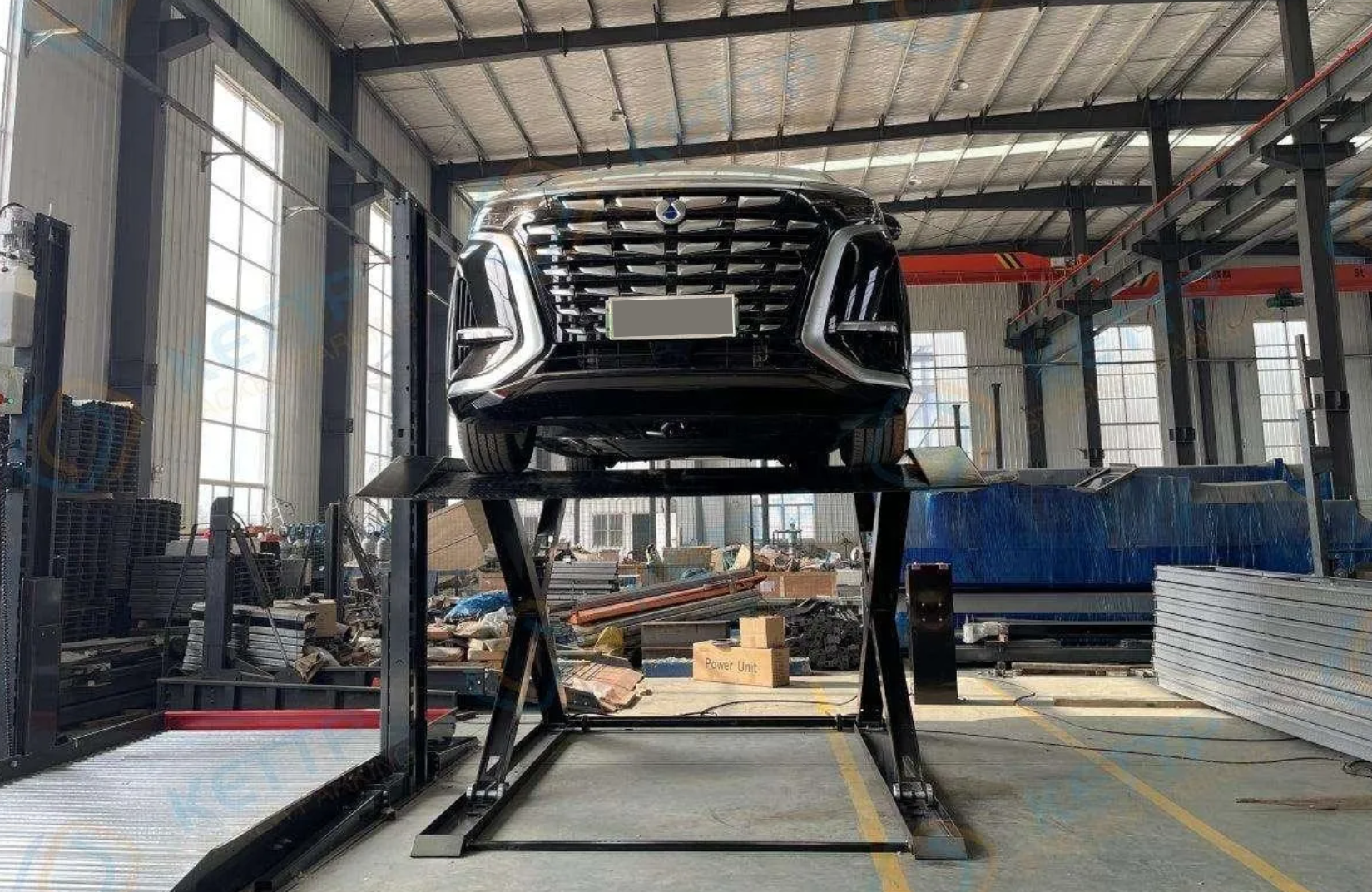

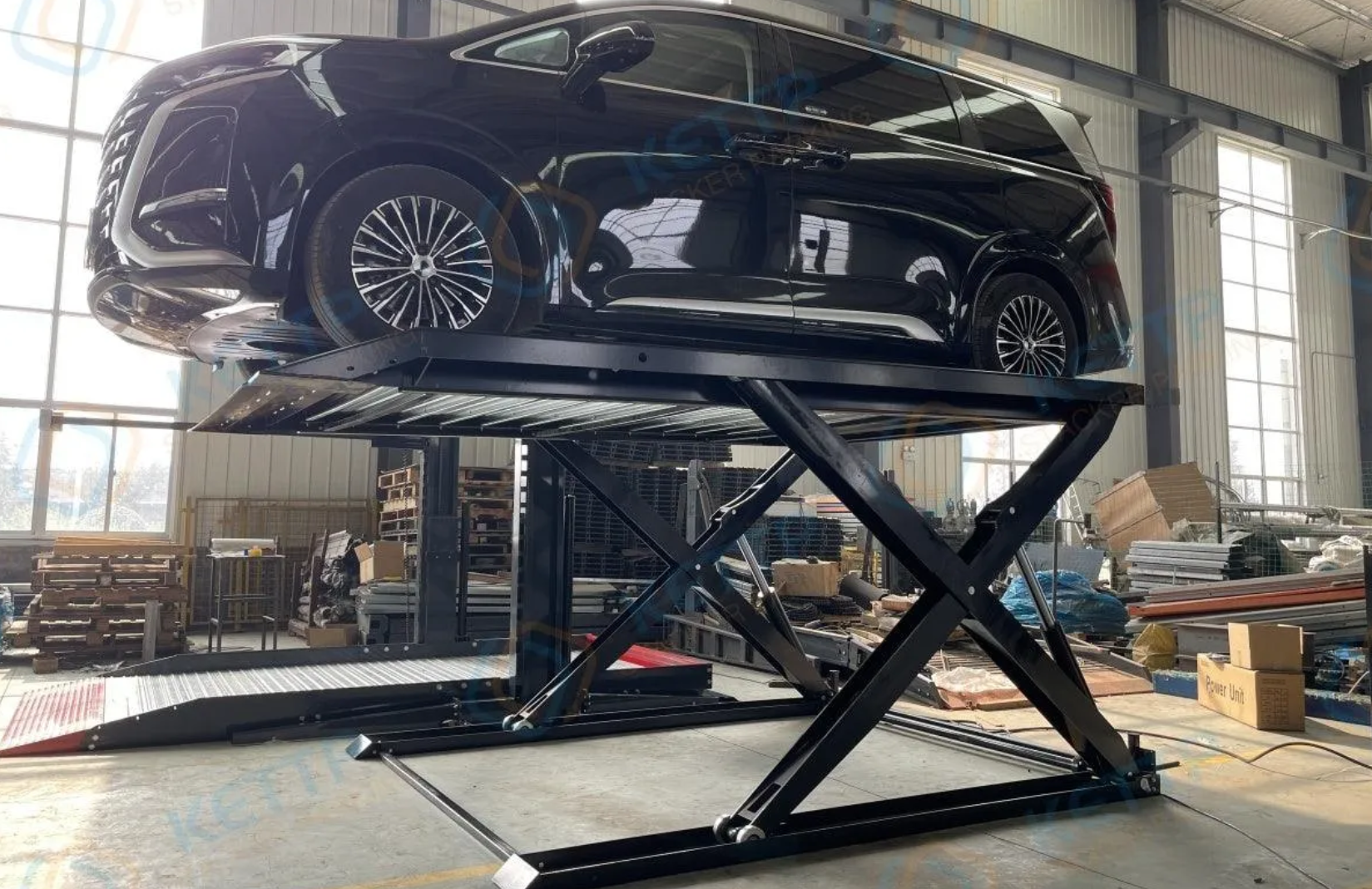

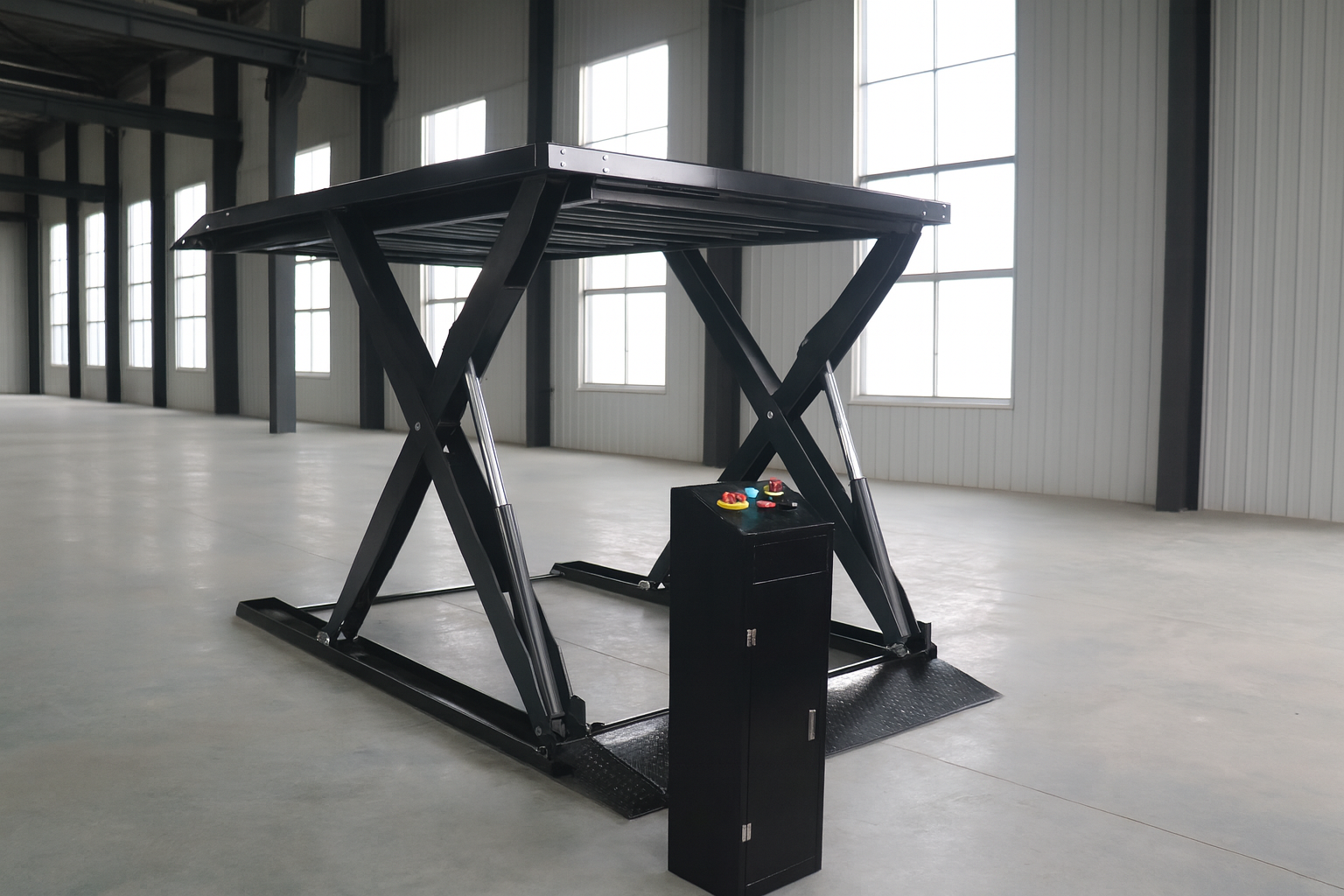

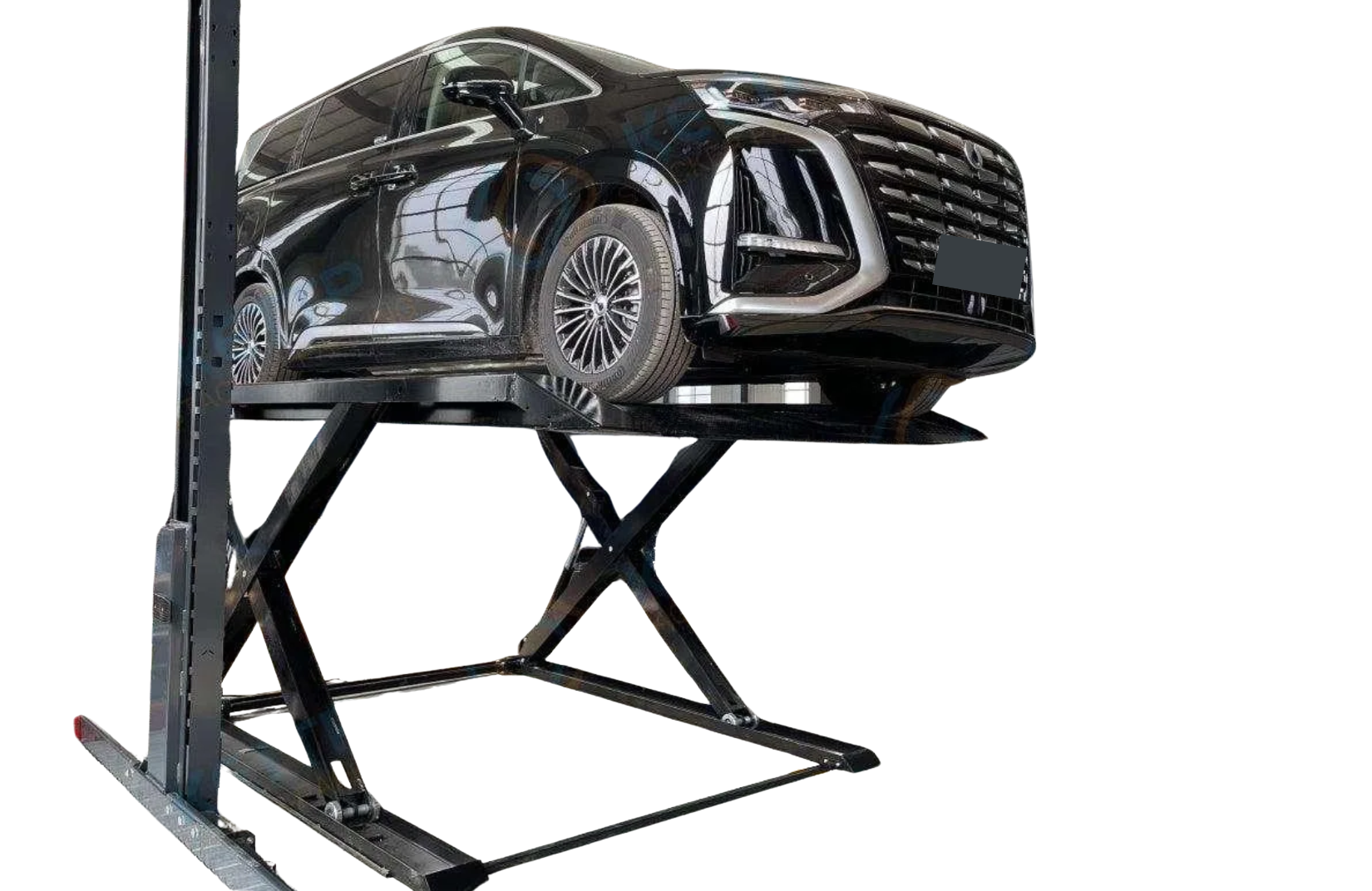

The 2SC model is a modern two-level parking solution utilizing a scissor mechanism for efficient and reliable performance. This lift is designed to ensure stability, easy installation, and minimal foundation requirements, making it exceptionally user-friendly and adaptable to various installation environments.
Key Advantages
-
Dynamic Mechanical Safety Locks: Secure the vehicle on both sides, providing a high level of safety.
-
Easy Installation: No special concrete foundation required.
-
Automatic Lock Release: Allows smooth and simple vehicle lowering.
-
No Additional Supports Required: No need for supporting posts when the platform is lowered.
-

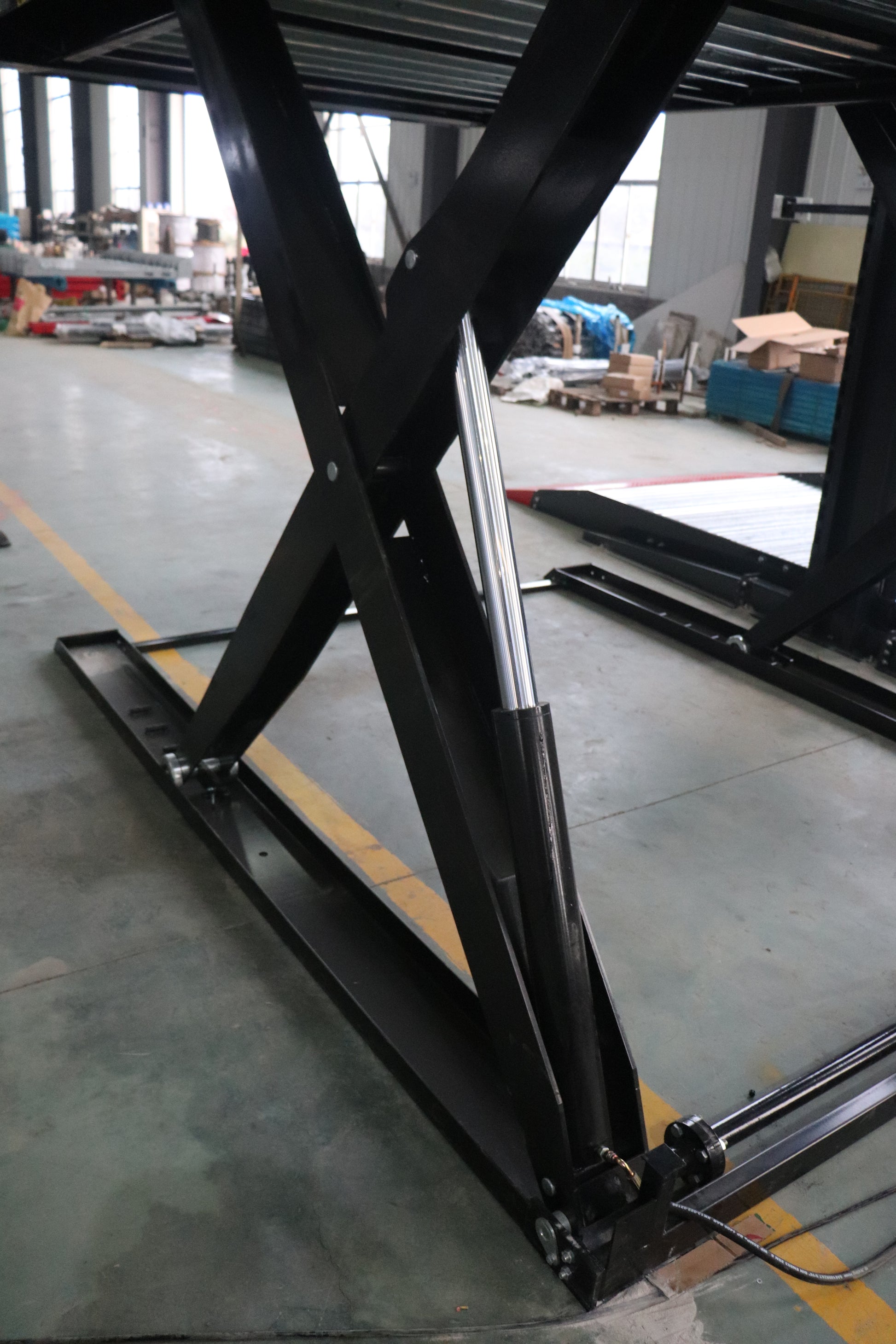

Dual-Cylinder Drive: Ensures smooth, balanced, and efficient lifting operation.
-
Reinforced Structure: Provides reliability and stability even under heavy loads.
-

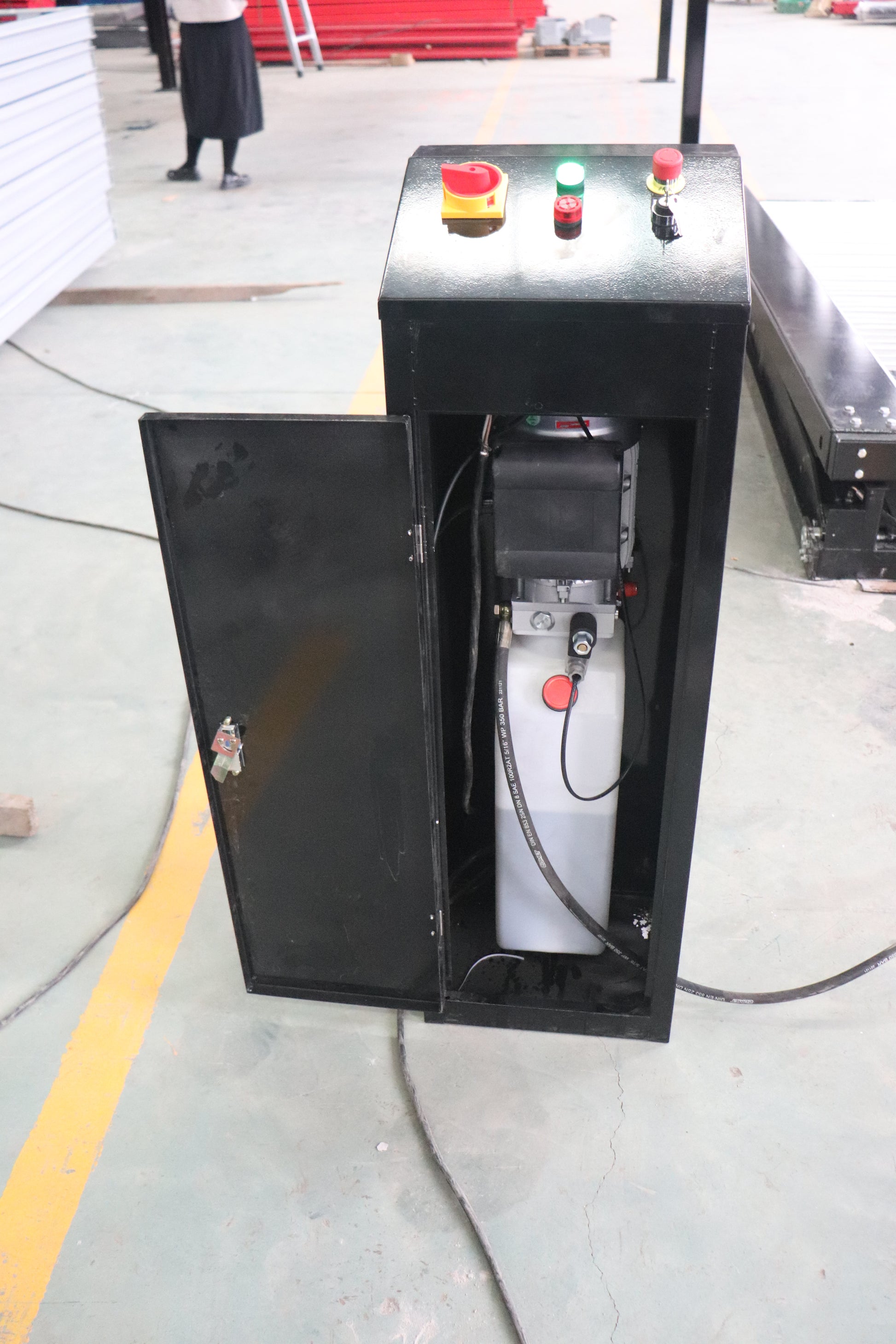

Overload Protection: Hydraulic system safeguards against excessive loads.
-

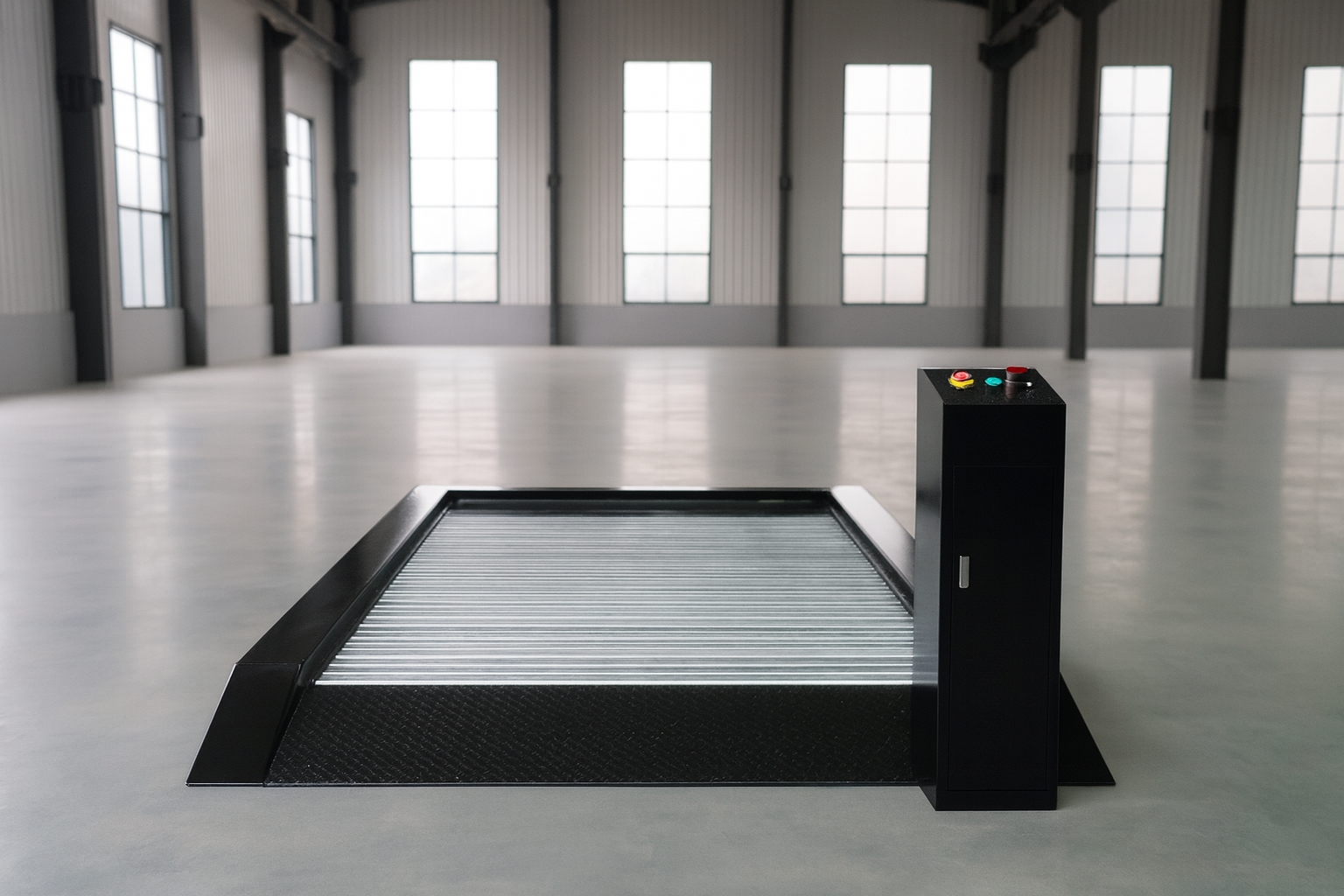

Full-Width Platform: Sloped platform edge reduces ramp height and simplifies vehicle loading.
-
Outdoor Installation Capability: Can be installed outdoors with optional accessories (contact us for details).
-
CE Certified: Complies with European safety standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 2SC |
| Lifting Height | 1800 mm |
| Lifting Capacity | 2000 kg |
| Platform Length | 4010 mm |
| Max Vehicle Dimensions | 5000 × 1900 × 1950 mm |
| Motor Power | 2.2 kW |
| Power Supply | 110–450 V, 50/60 Hz, single or three phase |
| Control Voltage | 24 V |
| Lifting / Lowering Time | ~45 s / ~35 s (depending on load) |
| Finish | Powder coating |
| Lock Release | Automatic electric |
| Lock Type | Dynamic mechanical locks |
| Color Codes | RAL 7016 (Anthracite), RAL 3020 (Red) |
