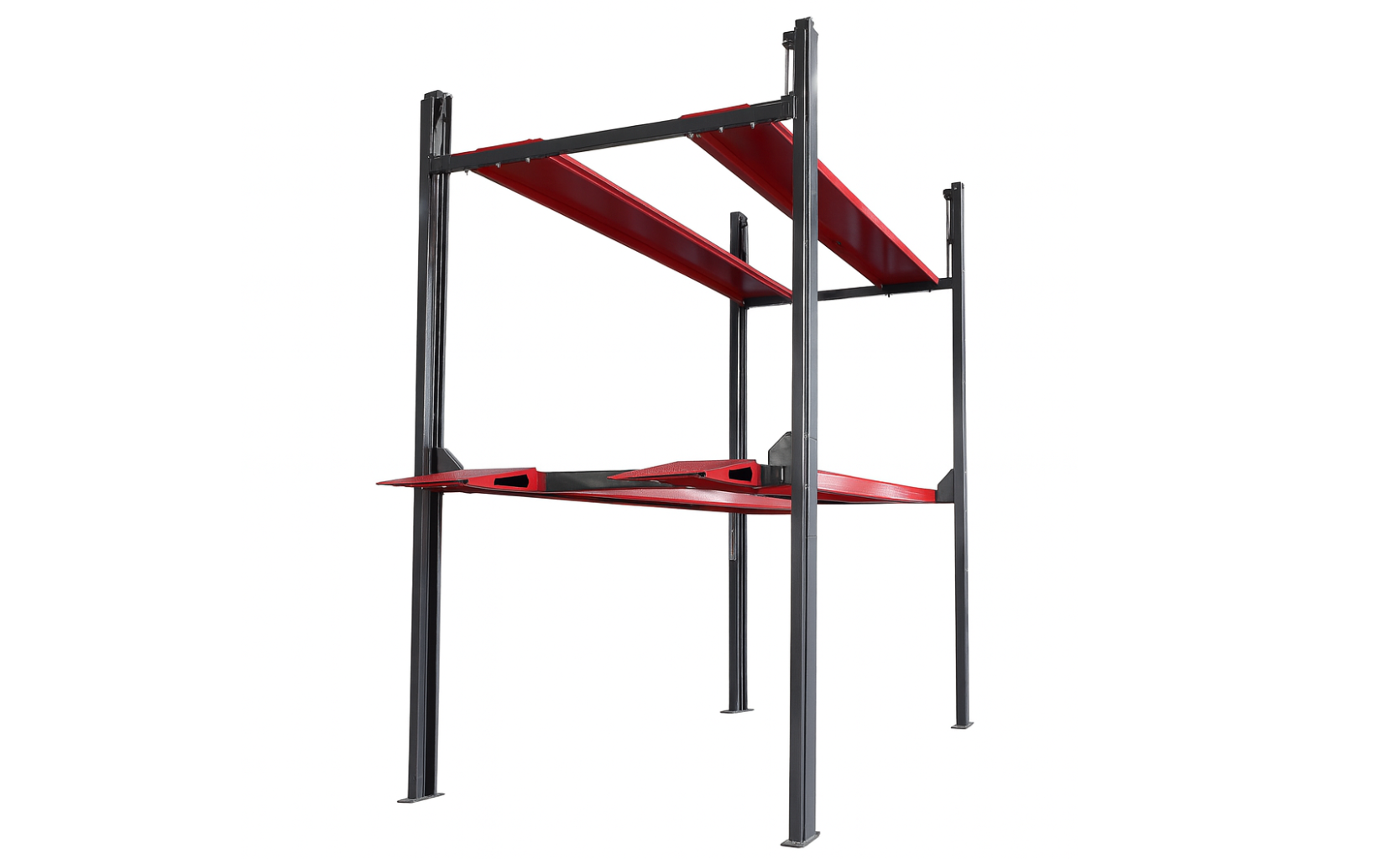

3F Model – Three-Level, Four-Post Parking Lift
3F Model – Three-Level, Four-Post Parking Lift
Couldn't load pickup availability

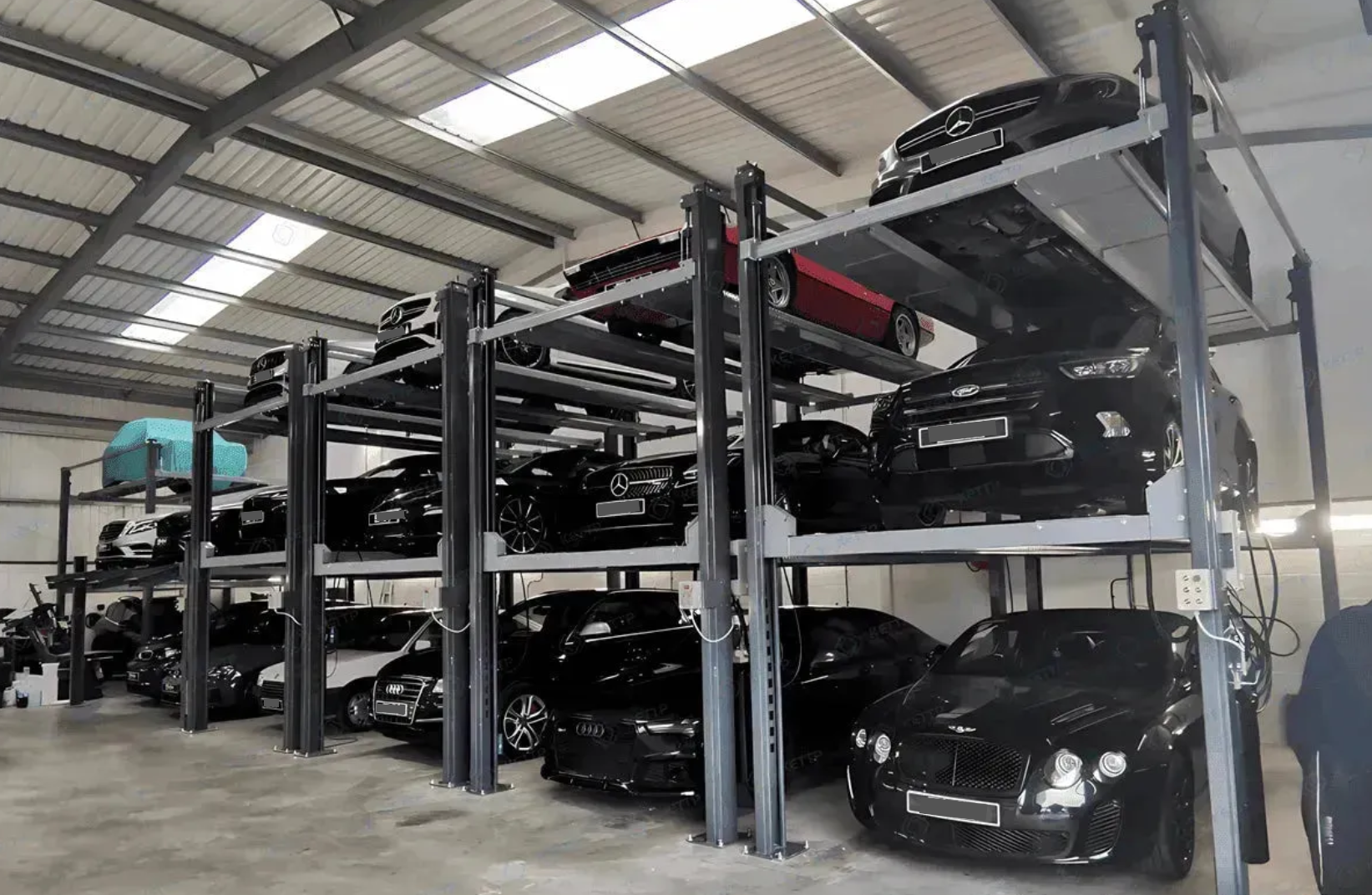

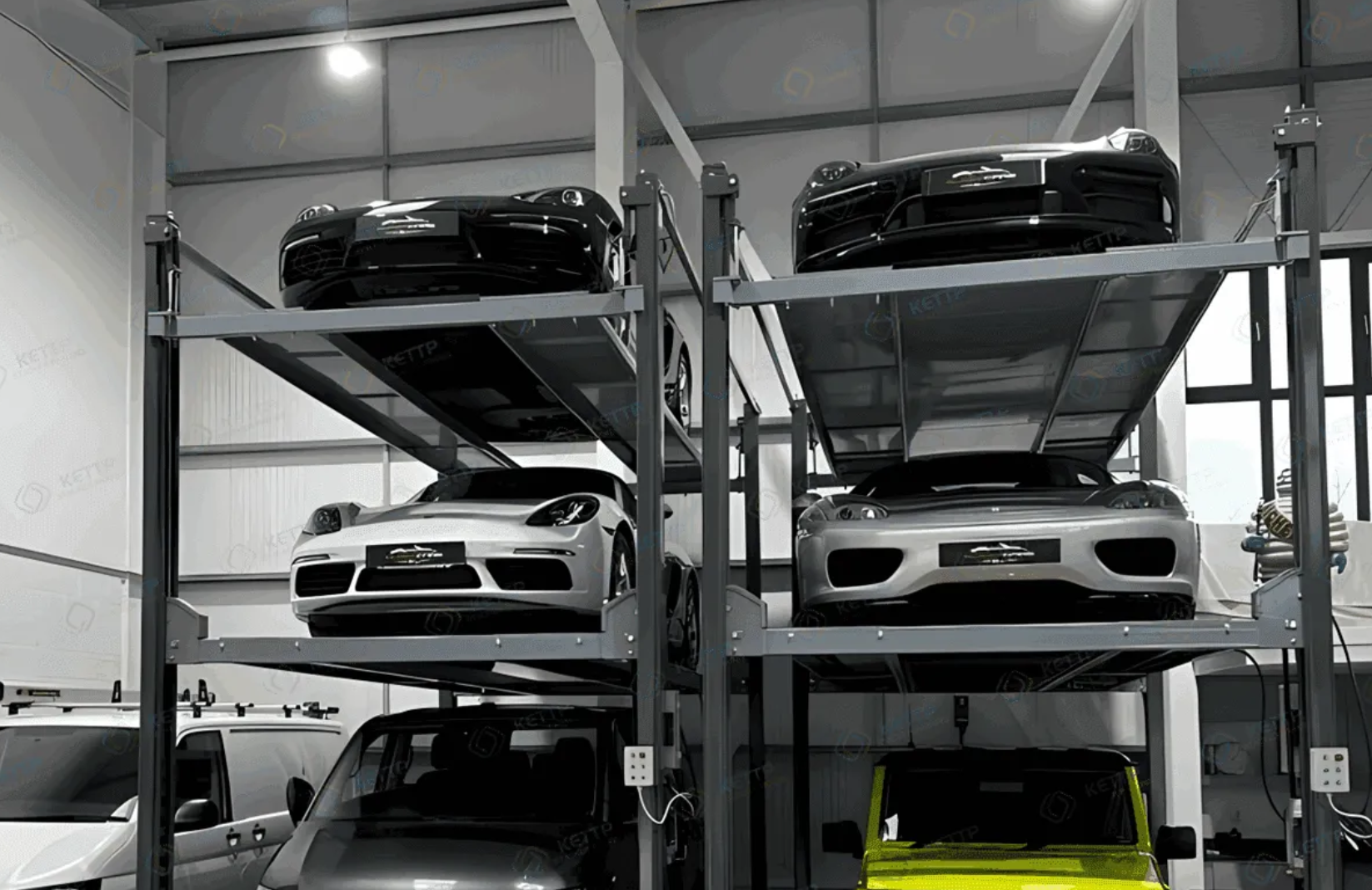

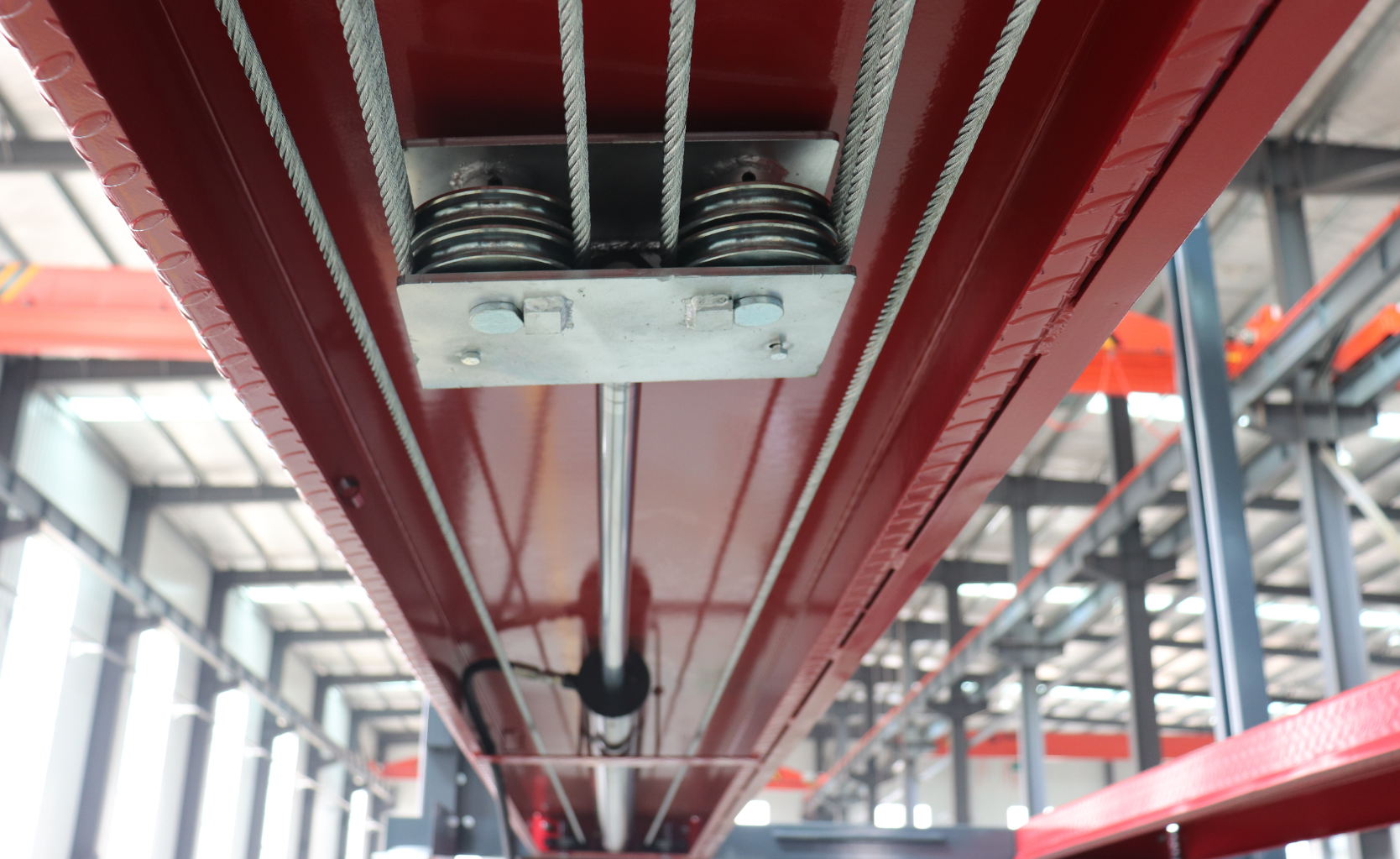

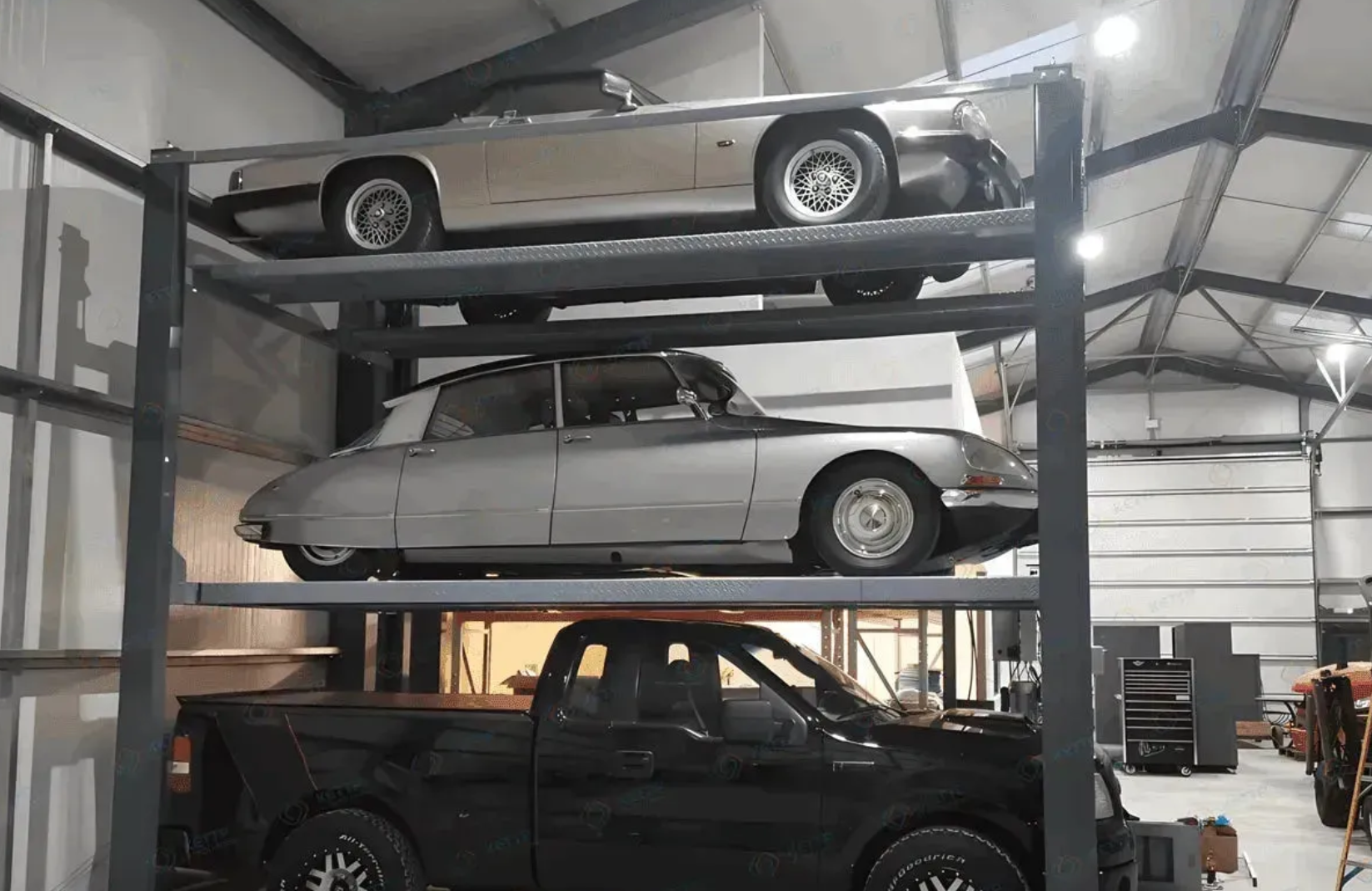

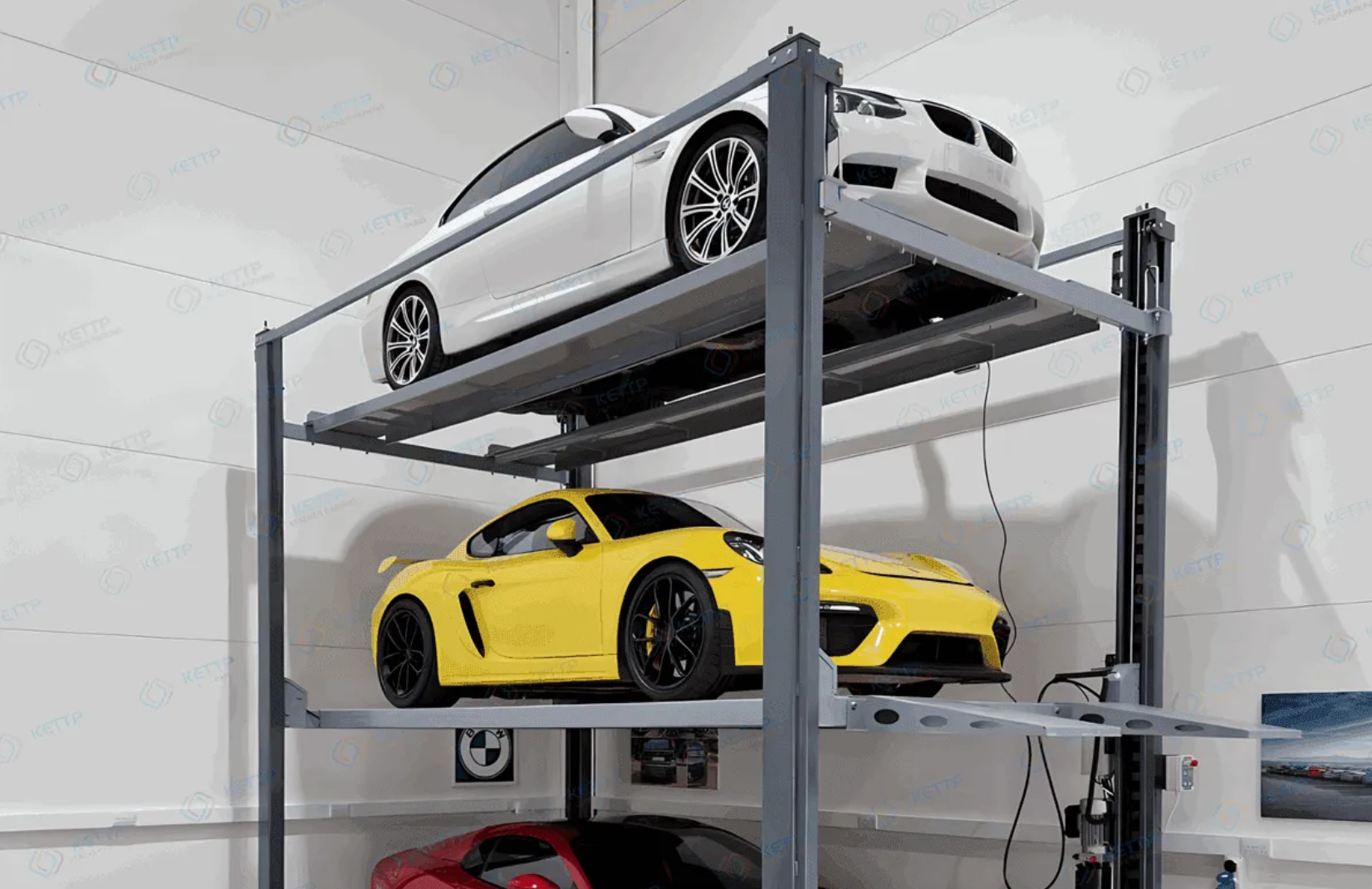

The 3F model is a robust three-level, four-post parking lift designed for efficient parking of up to three vehicles within a single system. Each platform can lift up to 2500 kg, with adjustable platform heights to accommodate various vehicle sizes. The lift operates using a combination of hydraulic cylinders and steel cables, ensuring reliable performance. Ideal for vehicle storage, public parking areas, and residential complexes, this solution offers both versatility and efficiency.
Key Advantages
-
Comprehensive Mechanical Locks: Secure vehicle locking at multiple heights for enhanced safety during parking and operation.
-
Emergency Stop Button: Instantly stops lifting or lowering when the button is released – prevents accidental operation.
-
Electromagnetic Lock Release: Automatic lock system ensures safe and convenient usage.
-
Ribbed Metal Platforms and Ramps: Improve surface grip, reducing the risk of slipping – safer vehicle movement.
-
Reinforced Construction: Engineered for heavy-duty applications and continuous use in automotive environments.
-
Overload Protection: Hydraulic system prevents overloading, extending equipment lifespan.
-
Outdoor Installation Option: Suitable for outdoor use with optional configurations – contact us for a customized solution.
-
CE Certified: Meets European safety and quality standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3F |
| Lifting Height | 1800 mm / 2100 mm |
| Lifting Capacity | 2000 kg / 2500 kg per platform |
| Platform Length | 4000 mm |
| Max Vehicle Dimensions | 5000 × 1900 × 2050 mm |
| Motor Power | 2.2 kW |
| Power Supply | 110–450 V, 50/60 Hz, single or three phase |
| Control Voltage | 24 V |
| Lifting / Lowering Time | ~80 s / ~60 s (depending on load) |
| Finish | Powder coating |
| Lock Release | Automatic electric |
| Lock Type | Dynamic mechanical locks |
| Color Codes | RAL 7016 (Anthracite), RAL 3020 (Red) |
