CTF / CTP – Car Turntable

The CTF (friction-driven) and CTP (gear-driven) car turntables are designed to revolutionize vehicle movement in tight spaces. Each model is tailored to specific needs:

• CTF: Slim-profile, friction-driven, easy to install, requires no deep pit.

• CTP: Thicker construction with gear-drive transmission for enhanced stability and durability.

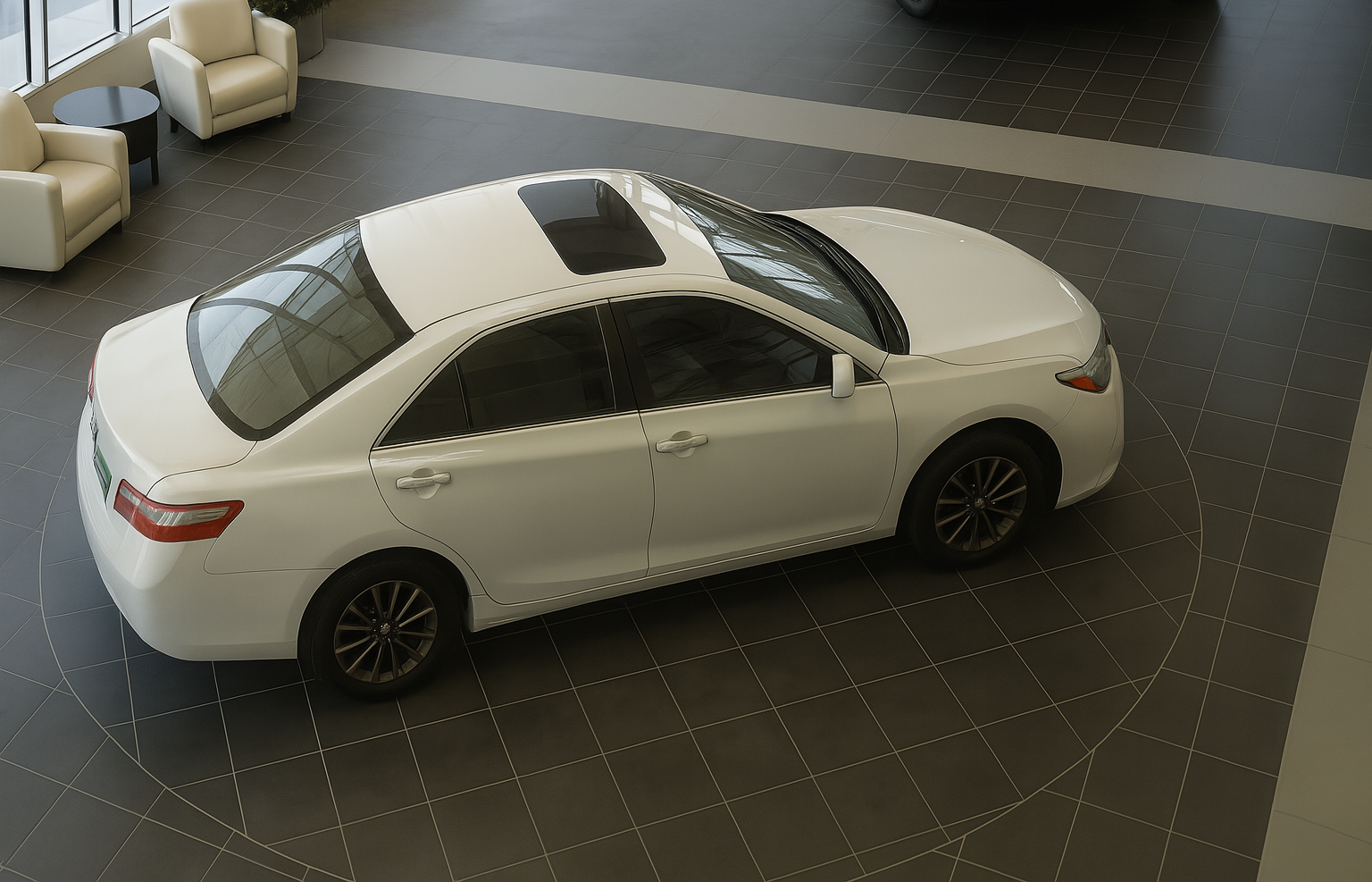

These turntables are ideal for car display areas, narrow courtyards, or confined driveways, providing practical and aesthetic vehicle rotation solutions.

Key Advantages

• CTP Motor Mounting: Can be positioned at the platform center or externally.

• CTF Motor: Installed along the perimeter for optimized performance.

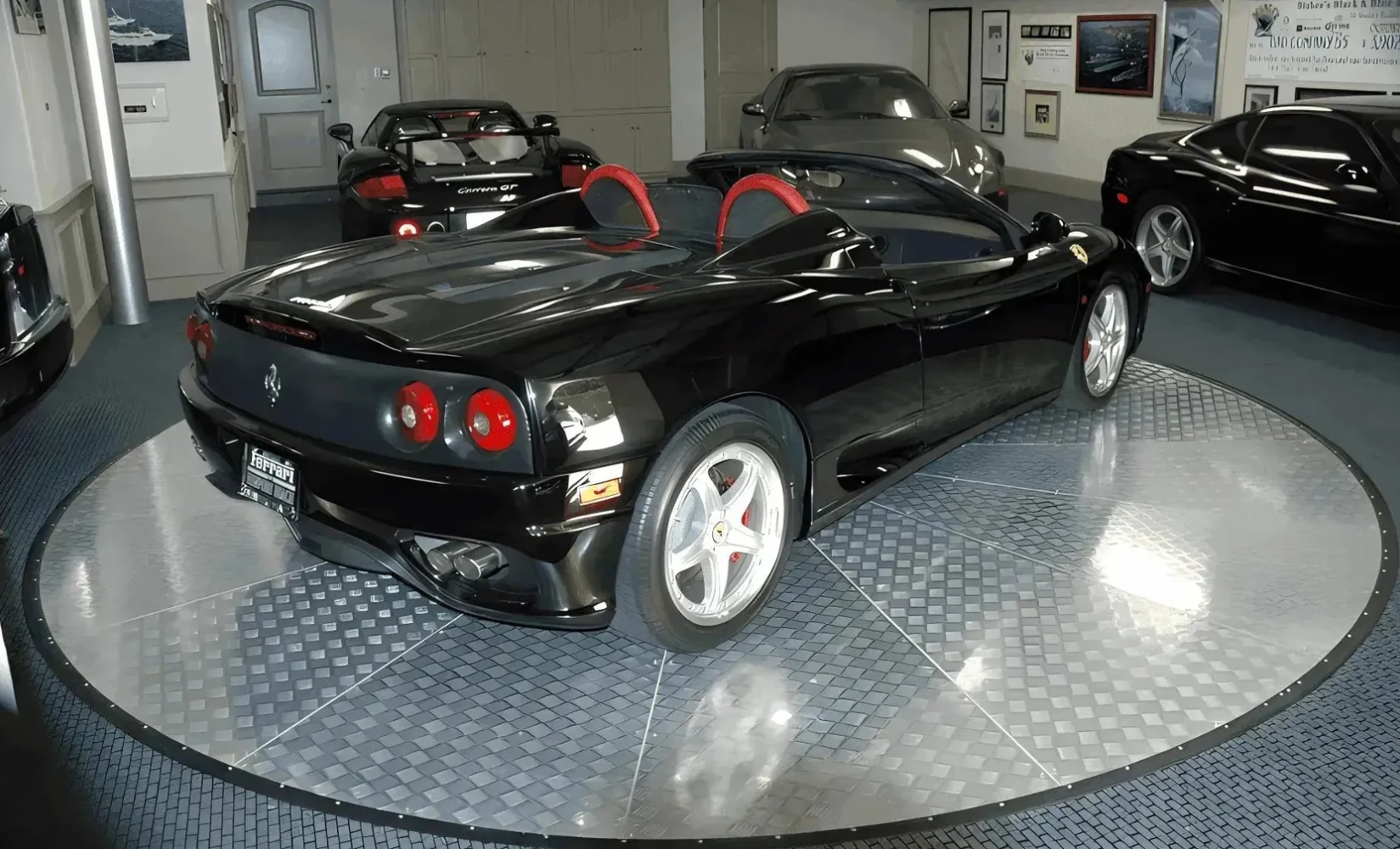

• Platform Surface Options: Checker plate steel, smooth steel, or aluminum plate finish.

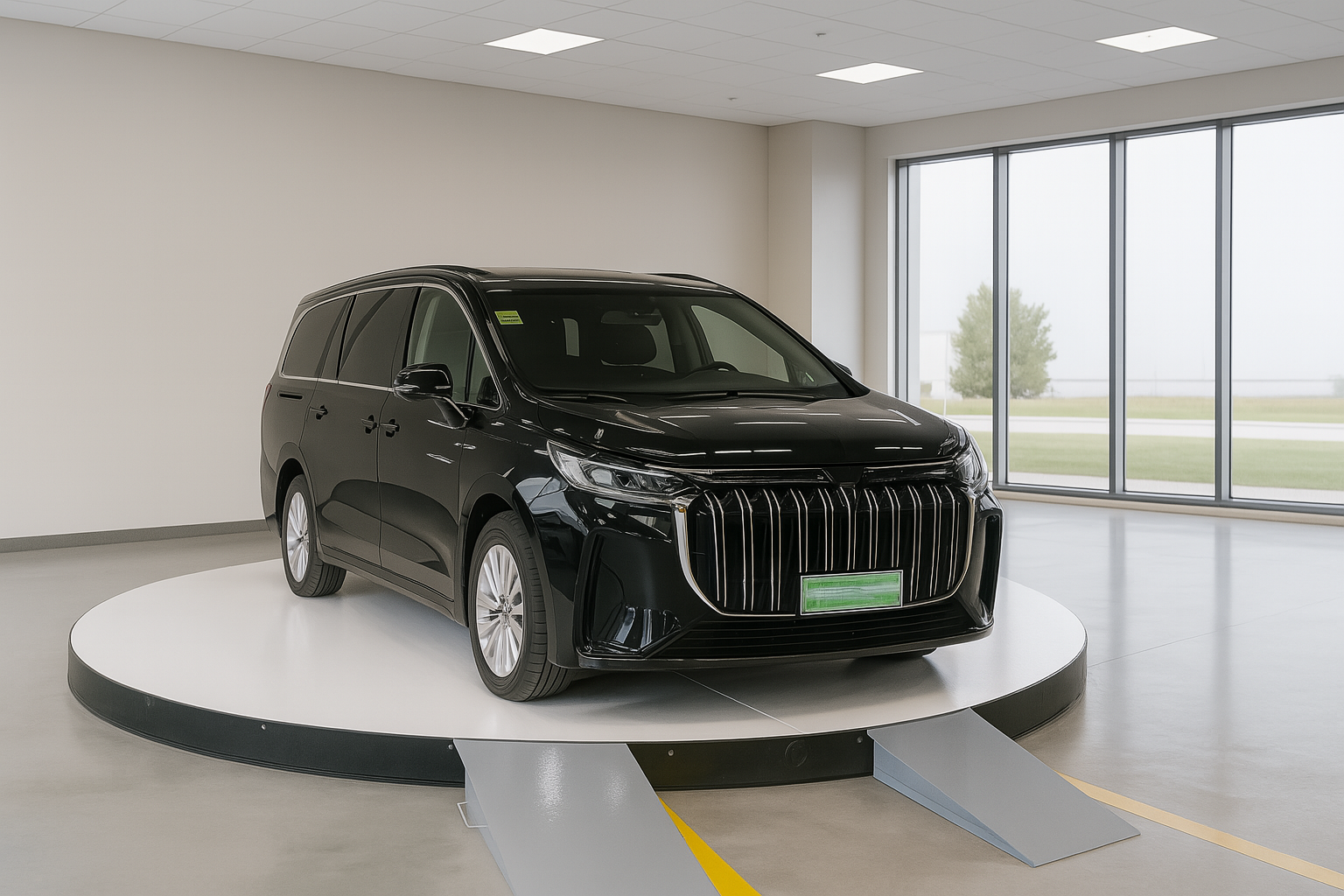

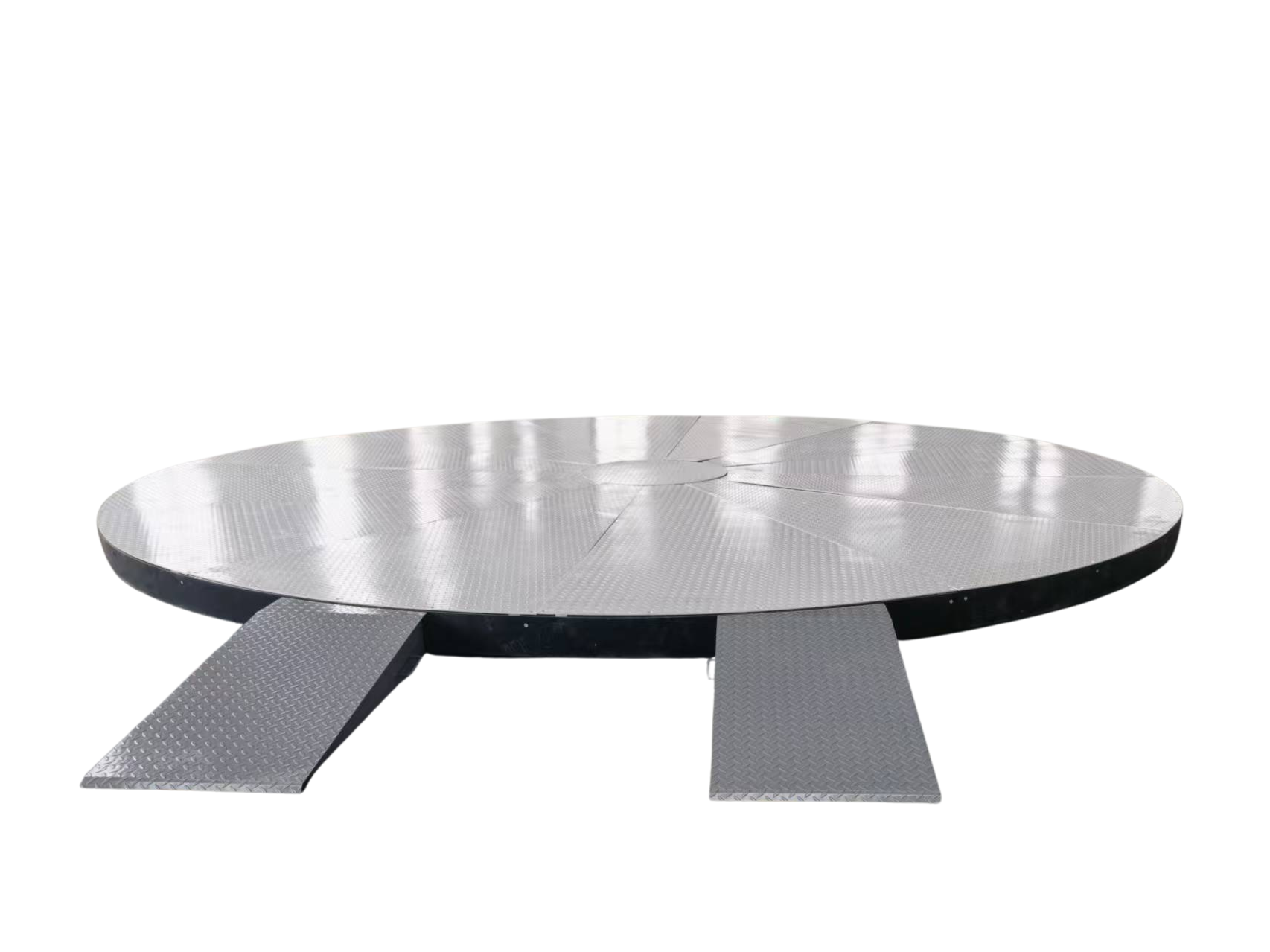

• Perimeter Ramp Available: Allows above-ground installation without requiring a pit.

• Customizable Diameter: Available up to 10 meters.

• Load Capacity: Up to 10 tons.

• Remote Control: For convenient operation.

• Reinforced Circular Frame: Ensures structural stability and long service life.

• CE Certified: Complies with European safety standards.

  Technical Specifications

  Parameter	CTF Model	CTP Model
  Platform Height	185 mm	311 mm
  Motor Power	480 W	1100 W
  Load Capacity	5000 kg	5000 kg
  Diameter	6000 mm	6000 mm
  Max Vehicle Dimensions	5000 × 1900 × 2050 mm	5000 × 1900 × 2050 mm
  Power Supply	110–450 V, 50/60 Hz, single or three phase	110–450 V, 50/60 Hz, single or three phase
  Control Method	Remote control / Push-button	Remote control / Push-button
  Control Voltage	24 V	24 V
  Rotation Speed	0.3–1 RPM	0.3–1 RPM
  Surface Finish	Powder coating / Galvanized steel	Powder coating / Galvanized steel
  Color Codes	RAL 7016 (Anthracite), RAL 3020 (Red)	RAL 7016 (Anthracite), RAL 3020 (Red)
