FF – Four-Post Platform Lift
FF – Four-Post Platform Lift
Couldn't load pickup availability

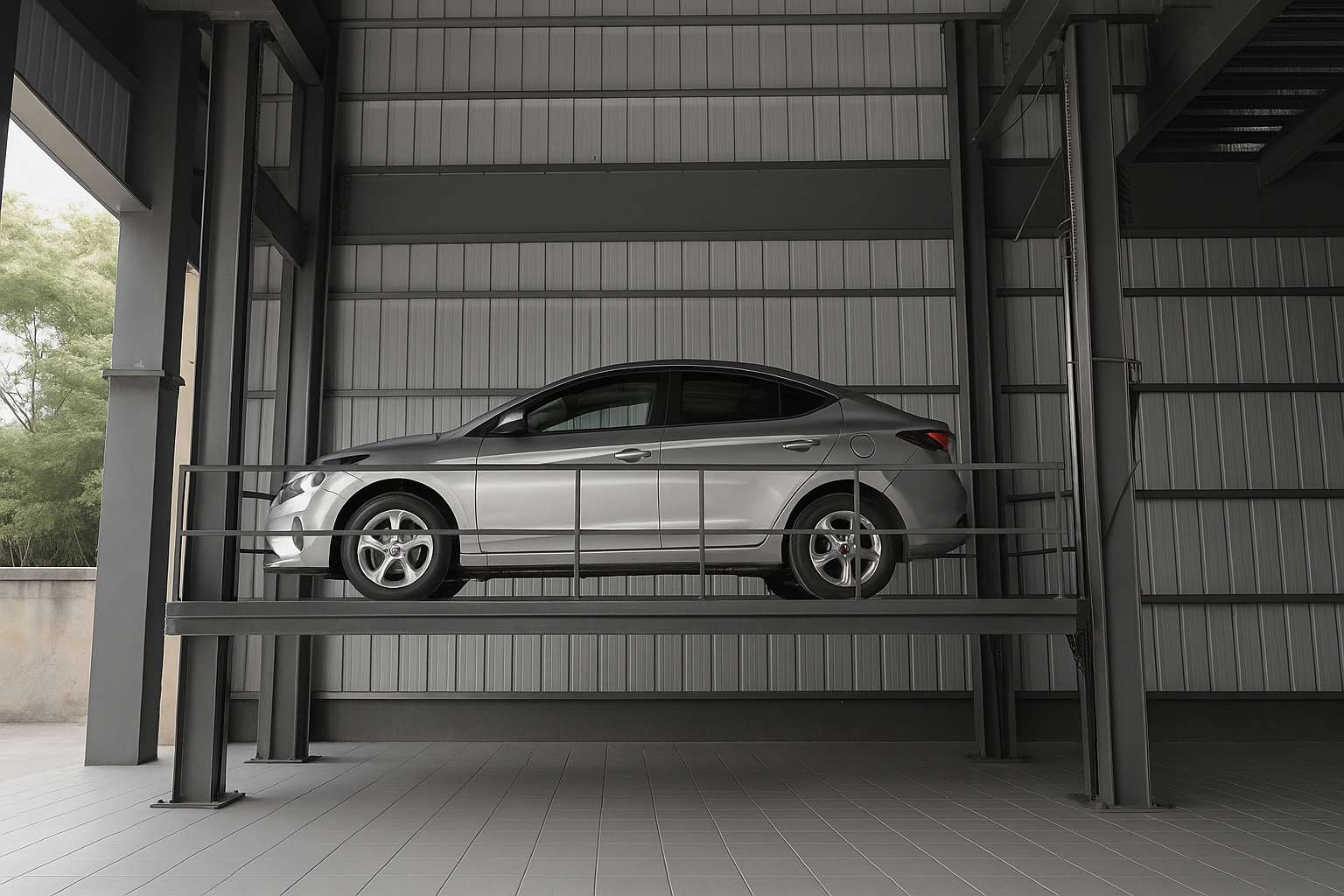

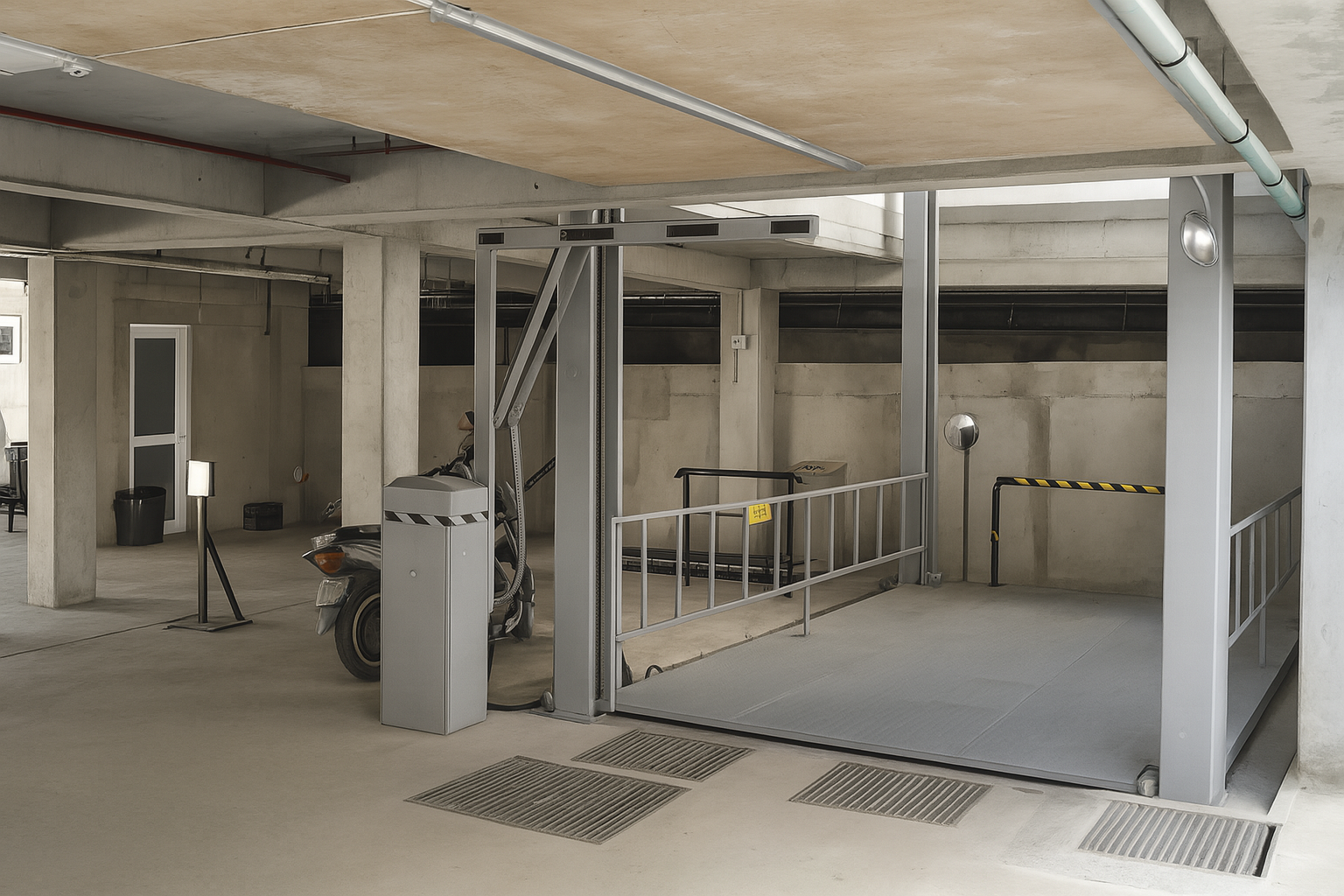

The FF model stands out for its efficiency and versatility, designed for smooth transportation of vehicles or cargo between levels. This is a four-post platform lift suitable for various industrial applications. Models can be adapted according to different lifting height requirements, ensuring maximum flexibility.
Wide Range of Applications
With its robust design and high performance, the FF model is widely used in:
-
Car showrooms
-
Warehouses
-
Manufacturing and repair workshops
Key Advantages:
-
Dual chain drive for improved stability and performance
-
Remote control option for more convenient operation
-
Safety rails on both sides of the platform
-
Explosion-proof valve system, preventing the platform from falling if the hydraulic hose breaks
-
Emergency stop buttons at the top and bottom of the platform
-
Maximum lifting height: up to 15 meters
-
Lifting capacity: up to 6000 kg
-
Self-locking system in the event of power failure
-

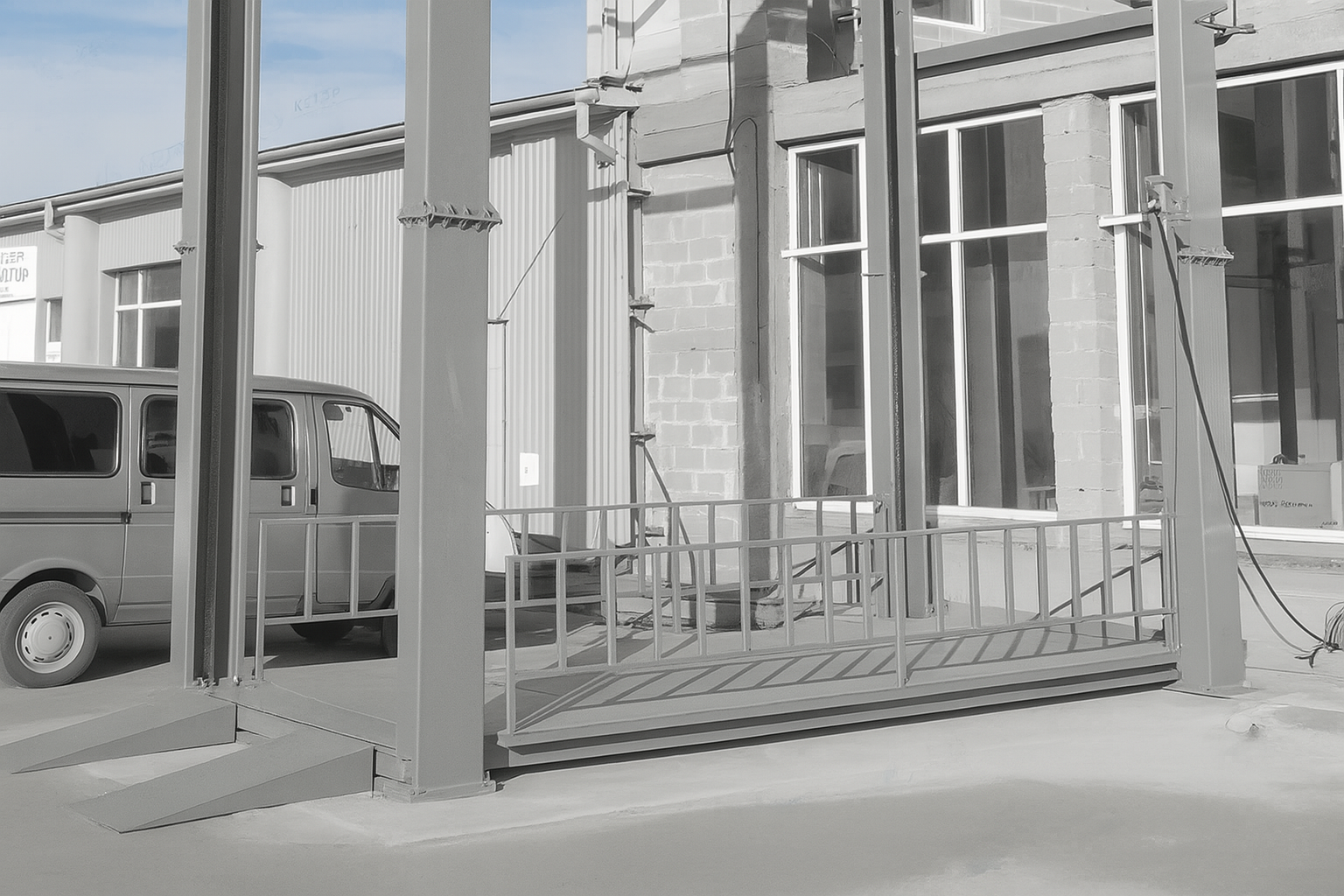

Can be installed with a slope (ramp) or recessed into a pit
-
Optional automatic stop switch
-
CE certified
Technical Specifications
| Specification | FF Model |
|---|---|
| Lifting height | 3000 mm |
| Lifting capacity | 3000 kg |
| Platform dimensions | 5500 × 3000 mm |
| Max vehicle dimensions | 5000 × 1900 × 2050 mm |
| Motor power | 4 / 5.5 kW |
| Power supply | 110–450 V, 50/60 Hz, 3-phase |
| Control voltage | 24 V |
| Lifting speed | 4 m/min |
| Control system | Push-button / remote control |
| Finish | Powder coating |
| Colors | RAL 7016; RAL 3020 |
